One of the limitations of SQL express is that:


SQL Server express support up to 4 cores in the SAME socket”


Therefore how you define the CPU resources for the VM running SQL Express matters a lot.

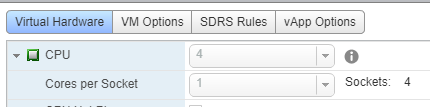

The Default is typically:



This will result in SQL Express only using 1 core of the machine.


Instead configure it like this:

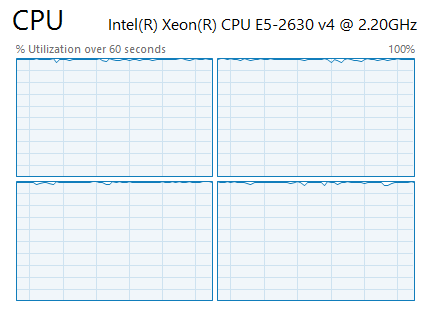

Then all 4 cores will be used.
