There is an online tool where our electrical engineers design the PLC racks for a given job for TIA sytsems. (Equivalent to AB’s Architecture Builder)
https://mall.industry.siemens.com/spice/tstweb/#/Solutions/

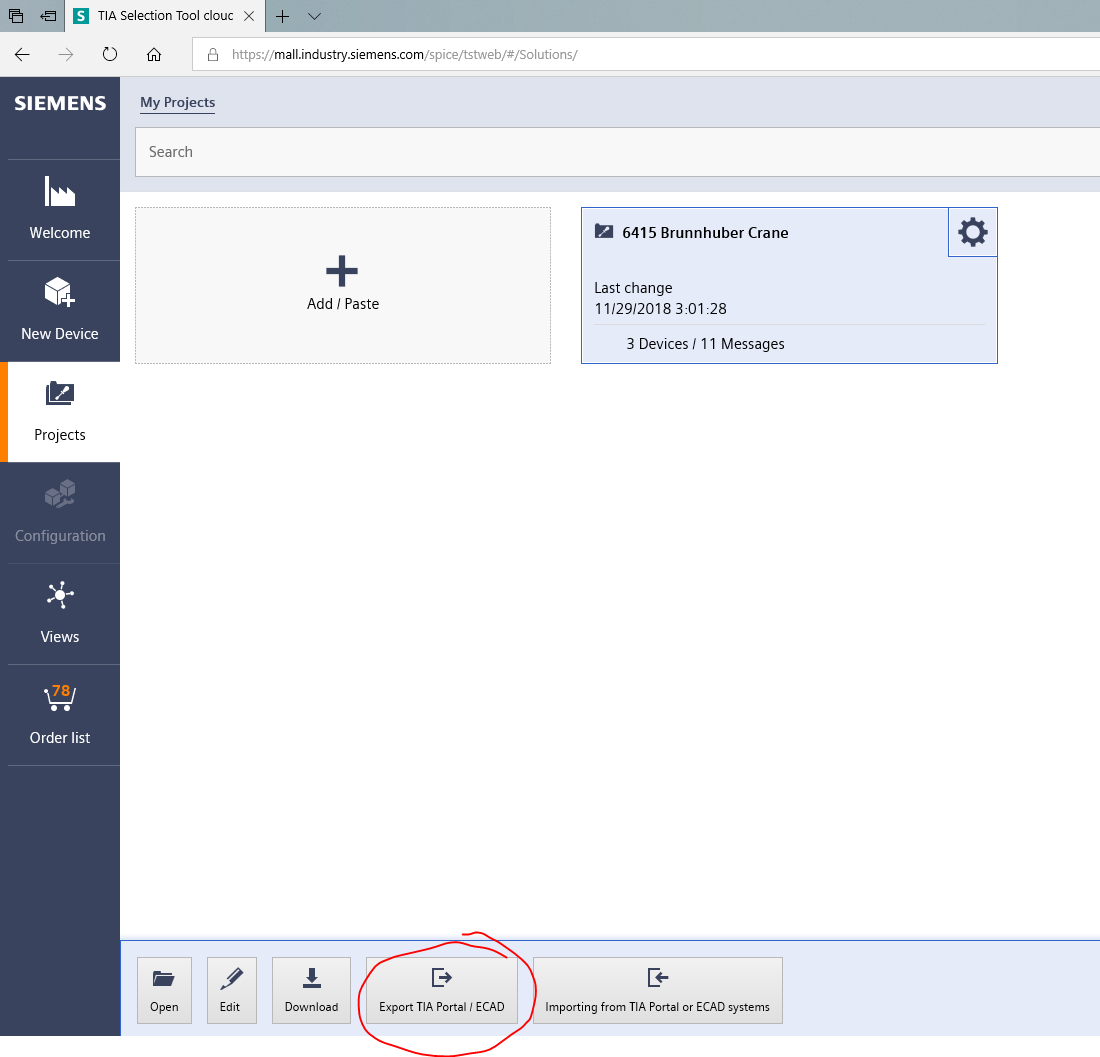

After electrical has finalised the design and ordered the components a file can be exported to TIA. This is a .aml file (see attached)

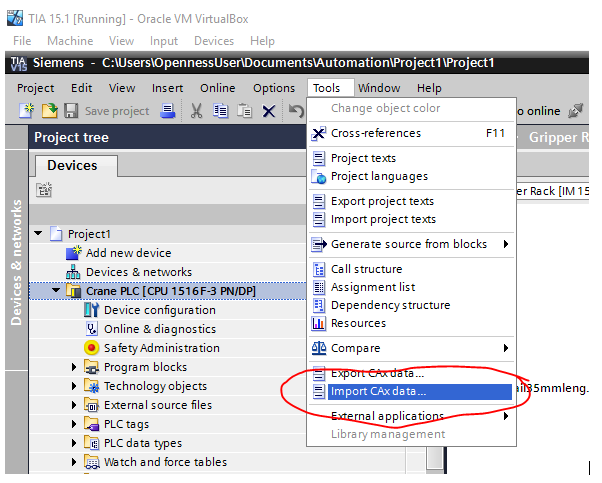

Now run TIA logged in as an TIA Openness user:

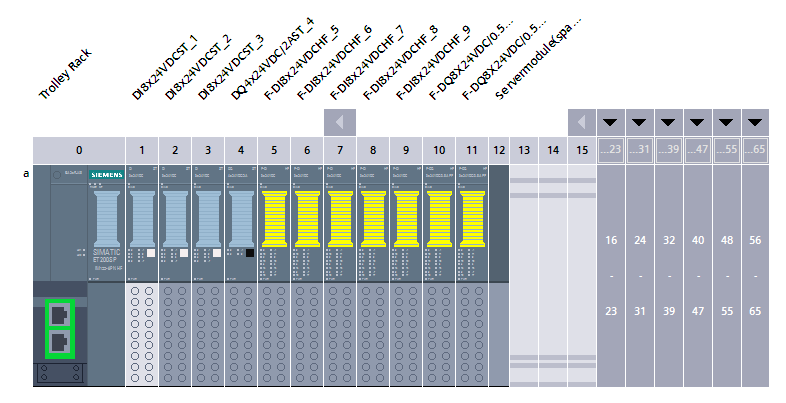

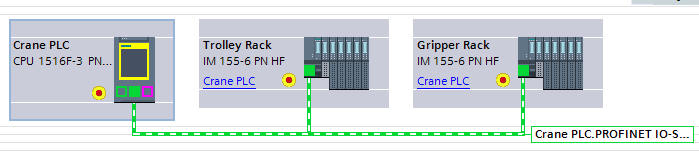

This will import the file creating all CPU’s, remote racks and cards.
It is also possible for to export a TIA projects hardware back to the web based selection tool. This may be useful to order critical spares
